VARIOKIT VCC Composite Formwork Carriage

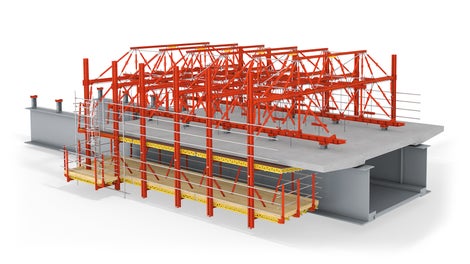

Formwork carriage used on the steel substructure for the construction of carriageway slabs

The VARIOKIT steel composite carriage is used for the fabrication of steel composite bridges with closed or open steel profile cross-sections. This is characterised by its high rigidity both in longitudinal and cross direction of the carriage.

The steel composite carriage is moved via heavy-duty castors, which are fixed to seats on the steel structure. Since the heavy-duty castors have a steerable bearing, even small radii can be manoeuvered without any problem. The basis for the formwork carriage is a longitudinal truss, consisting of main beams of the HD 200 system. The length can be adjusted modularly.

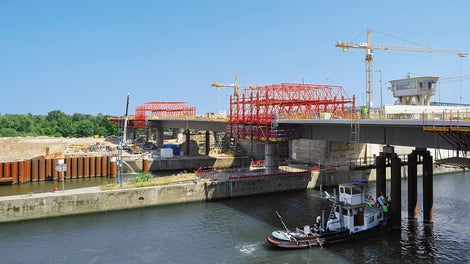

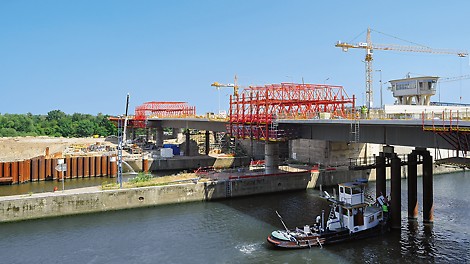

VARIOKIT VCC Composite Formwork Carriage in action

Cost-effective solution

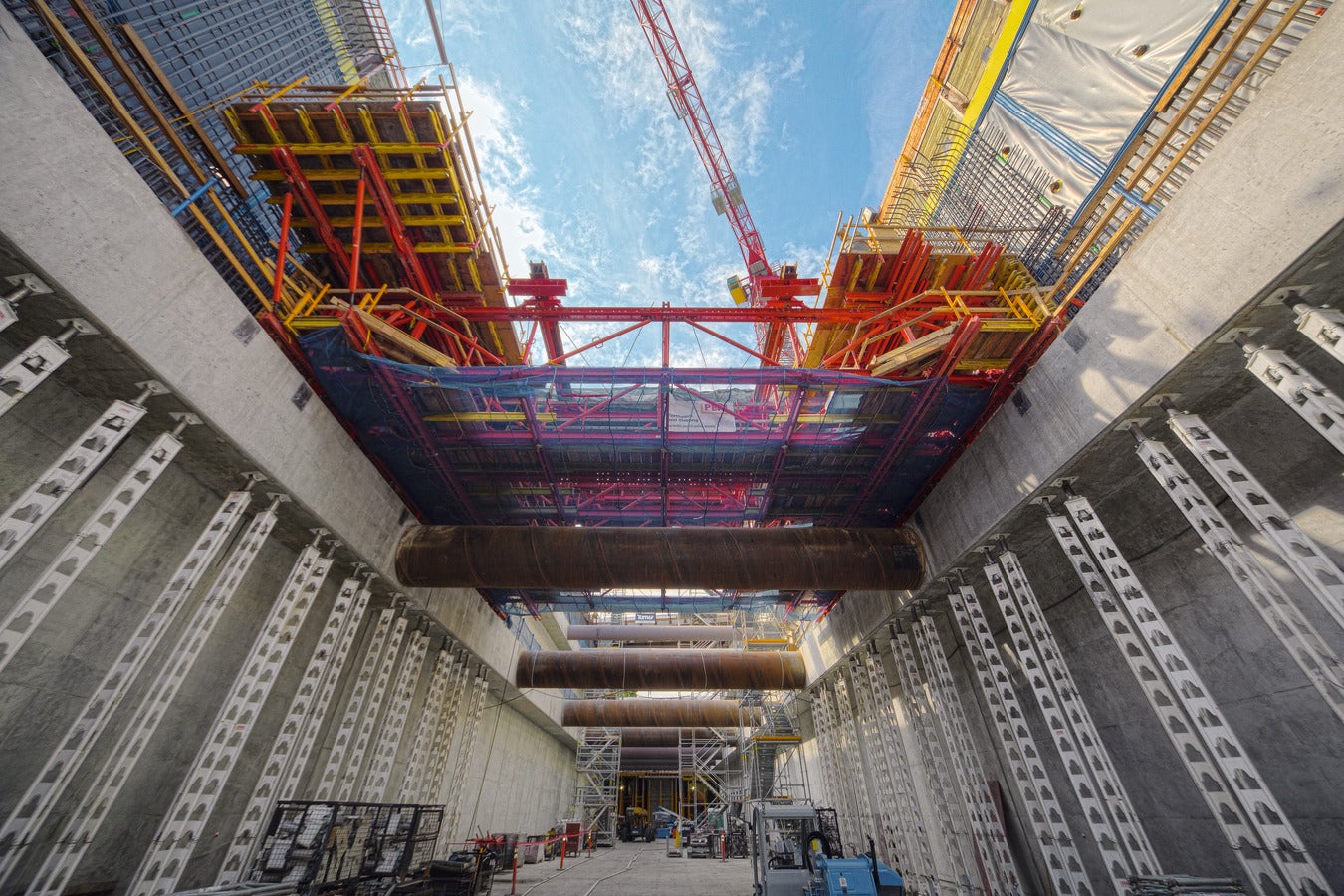

The influence width of the cross-formwork units can be chosen freely with the VARIOKIT system. This means that the structural load on the material can be optimised to lead to a very cost-effective solution.
Easy adjustments to a structure's geometry

The cross formwork units are assembled completely from VARIOKIT material which is a highly adaptable and versatile system enabling small adjustments to the structure's geometry as required
Fast assembly

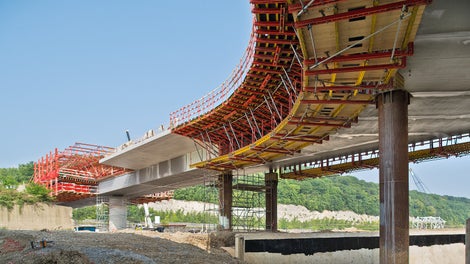

Fast assembly is possible with the standardised bolt connection of the VARIOKIT engineering construction kit.

Interested in using VCC for your next project?

Free Consultation

Feel free to give us a call at +63 2 8831 8835, extension 120, to discuss your specific requirements in more detail.
